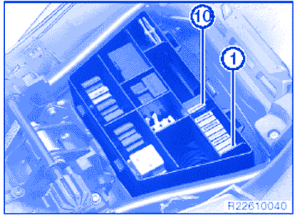

BMW R1150RT 2002 Fuse Box/Block Circuit Breaker Diagram
| SYMBOL | DESCRIPTION | AMPS |
|---|---|---|
| 1 | Instrument Cluster (telltale lights, Revolution Counter), Indicator Damping, Windscreen Adjuster | 4A |
| 2 | Parking Light, Tail Light | 4A |
| 3 | Windscreen Adjuster, Power Socket 1 and 2, FID, OE Socket, Radio | 15A |
| 4 | Horn | 7.5A |
| 5 | Motronic Control Unit, Motronic Relay, Diagnosis Connector | 10A |
| 6 | Fuel-Pump Relay (Injection Valves, Cycles Valves, Oxygen Sensor) | 10A |
| 7 | Heated Handlebar Grip | 4A |
| 8 | Radio | 4A |
| 9 | Not Used | - |
| 10 | Fog Lamp Relay | 15A |
BMW R1150RT 2002 Fuse Panel/Board – Fuse Symbol Map
