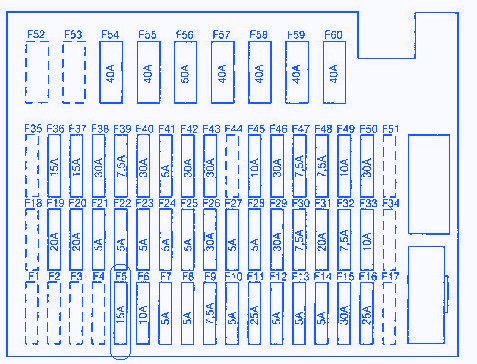

BMW Z-4 2008 Main Fuse Box/Block Circuit Breaker Diagram
| Equipment | fuse |
|---|---|
| Airbag | 13,45 |
| ACS/DSC | 7,24,42,43 |
| CD-Changer | 48 |
| Central Locking System | 11,30 |
| Cigarette Lighter | 5 |
| Cigarette Lighter Australia | 5,8 |
| Clutch Switch | 14 |
| Interior and Luggage Comp Lights, Lighting Circuits(Low-Beam Headlights, high-Beam Headlights, Brake Lights, Side Lights, Turn Indicators, Hazard Warning Flasher | 10,12,26 |
BMW Z-4 2008 Main Fuse Panel/Board – Fuse Symbol Map
