Buick Lucerne 2008 Under The hood Fuse Box/Block Circuit Breaker Diagram
| FUSES | USAGE |
|---|---|
| 1 | Engine Control Module (ECM), Crank |
| 2 | Fuel Injector Odd |
| 3 | Fuel Injector Even |
| 4 | Air Conditoning Clutch |
| 5 | Air Injection Reactor (AIR) Solenoid |
| 6 | Oxygen Sensor |
| 7 | Emission Device |
| 8 | Tranmission, Ignition 1 |
| 9 | Engine Control Module (ECM), Powertrain Control Module (PCM) |
| 10 | Climate Control System, Instrument Panel Cluster Ignition 1 |
| 11 | Airbag System |
| 12 | Horn |
| 13 | Windshield Wiper |
| 14 | fog Lamps |
| 15 | Right High Beam Headlamp |
| 16 | Left High Beam Headlamp |
| 17 | Left Low Beam Headlamp |
| 18 | Right Low Beam Headlamp |
| 19 | Windshield Washer Pump Motor |
| 20 | Left Front Comering Lamp |
| 21 | Right Front Comering Lamp |
| 22 | Air Pump (J Case) |
| 23 | Antilock Brake System (ABS)(J Case) |
| 24 | Starter (J Case) |
| 25 | Antilock Brake System (ABS) Motor (J Case) |
| 26 | Cooling Fan 2 (J Case) |
| 27 | Cooling Fan 1 (J Case) |
| 28 | Windshield Washer Heater (J Case) |

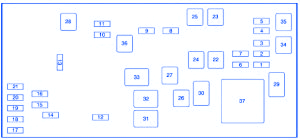

Buick Lucerne 2008 Under The hood Fuse Panel/Board – Fuse Symbol Map
