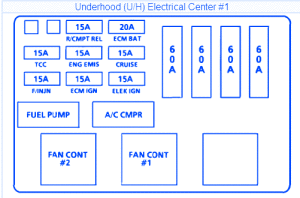

Buick Regal 1994 Underhood1 Fuse Box/Block Circuit Breaker Diagram
| Symbol | Description |
|---|---|
| MINIFUSE | |
| R/CMPT REL | Transaxle Range Switch |
| ECM BAT | Powertrain Control Module (PCM), Fuel Pump/oil Pressure Switch, Fuel Pump Relay, FAN CONT # 1 Relay |
| TCC | Automatic Transaxle, Transaxle Range (W/VIN M Only) |
| ENG EMIS | Generator, Digital Exhaus Recirculation (DEGR) Valve, Evaporative Emission (EVAP) Canister Purge Valve Solenoid, Heated Oxygen Sensor, FAN CONT #2 Relay, A/C CMPR Relay (VIN M Only), Powertrain Control Module (VIN L Only) |
| CRUISE | Cruise Control Module, A/C CMPR Relay (Vin L Only) |
| F/INJN | Fuel Injectors, High Resolution 24X Crankshaft Position Sensor (VIN M Only), Chamshaft Position Sensor (VIN M Only) |
| ECM IGN | Powertrain Control Module (PCM), Mass Air Flow (MAF) Sensor (VIN L Only) |
| ELEK IGN | Electronic Ignition (EFI) Control Module |
| RELAY | |
| FUELPUMP | FuelPump Relay |
| A/C CMPR | A/C Compressor Relay |
| FAN CONT #1 | Primary Cooling Fan |
| FAN CONT #2 | Secondary Cooling Fan |
| MAXIFUSE | |
| 1 | 60A Power to FAN CONT #2 Relay, Component Center : REAR DEFOG Circuit Breaker, POWER ACC Circuit Breaker |
| 2 | 60A Power to Underhood Electrical Center #1: R/CMPT REL Fuse, ECM BAT Fuse, I/P Fuse Block, BLMTR Fuse, STOP Fuse, DRLKS Fuse |
| 3 | 60A Power to FAN CONT #1 Relay |
| 4 | 60A Power to I/P Fuse Block : CTSY Fuse, C/LTR Fuse, ELEC Fuse, ACC Fuse |
Buick Regal 1994 Underhood1 Fuse Panel/Board – Fuse Symbol Map
