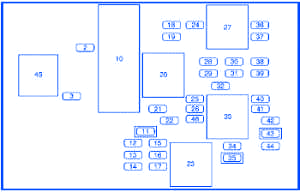

Buick Rendezvous 2010 Floor Console Fuse Box/Block Circuit Breaker Diagram
| FUSE | USAGE |
|---|---|
| 1 | Empty |
| 2 | Steering Wheel Radio Controls |
| 3 | Power Door Locks |
| 4 | Empty |
| 5 | Empty |
| 6 | Empty |
| 7 | Empty |
| 8 | Empty |
| 9 | Empty |
| 10 | Turn Signal and Hazard Lamp Flashers |
| 11 | Power Seats |
| 12 | Electronic Level Control (ELC) Compressor |
| 13 | Liftgate and Endgate |
| 14 | Rear Auxiliary Power Outlet |
| 15 | Electronic Level Control (ELC) Compressor Relay and Height Sensor |
| 16 | Heated Mirrors |
| 17 | Power Mirrors |
| 18 | Ignition 1 Module |
| 19 | Turn Signal Switch |
| 21 | Rear Defogger |
| 22 | Airbag Module |
| 24 | TCC Switch |
| 25 | HVAC Blower Motor |
| 26 | HVAC Mode and Temperature Motors and Head-Up Display |
| 28 | Accessory Power |
| 29 | Windshield Wipers and washer |
| 30 | Instrument Panel Cluster, Body Control Module (BCM), PASS-Key III |
| 31 | Park Lock Ignition Key Solenoid |
| 32 | Rear Window Wiper/Washer |
| 34 | Power Sunroof |
| 35 | Power Windows |
| 36 | Map Lamps, Courtesy Lamps and Instrument Panel Lights |
| 37 | Radio |
| 38 | UQ3 Radio Amplifier |
| 39 | Head-Up Display |
| 40 | Hazard Flashers |
| 41 | Instrument Panel Cluster, Climate Control, Security LED and Remote Keyless Entry Mode |
| 42 | PASS-Key III |
| 44 | Body Control Module (BCM) |
| 46 | Automatic Occupant Sensing Module |
Buick Rendezvous 2010 Floor Console Fuse Panel/Board – Fuse Symbol Map
