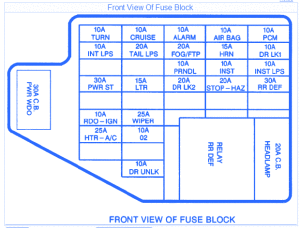

Buick Skylark 1997 Fuse Box/Block Circuit Breaker Diagram
| FUSE MAP | AMPS |
|---|---|
| TURN | 10A |
| INT LPS | 10A |
| PWR ST | 30A |
| RDO-IGN | 10A |
| HTR-A/C | 25A |
| CRUISE | 10A |
| TAIL LPS | 20A |
| LTR | 15A |
| WIPER | 25A |
| O2 | 10A |
| DR UNLK | 10A |
| ALARM | 10A |
| FOG/FTP | 20A |
| PRNDL | 10A |
| DR LK2 | 20A |
| AIR BAG | 10A |
| HRN | 15A |
| INST | 10A |
| STOP-HAZ | 20A |
| PCM | 10A |
| DR LK1 | 10A |
| INST LPS | 10A |
| RR DEF | 30A |
| PWR WDO | 30A C.B. |
| HEADLAMP | 20A C.B. |
Buick Skylark 1997 Fuse Panel/Board – Fuse Symbol Map
