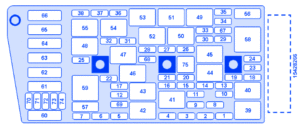

Cadillac Allante 1992 Main Fuse Box/Block Circuit Breaker Diagram

Cadillac Allante 1992 Main Fuse Box/Block Circuit Breaker Diagram



SYMBOLFUSE/RELAY MAPAMPS
MINI FUSES
1F/PMP20A
2HVAC BLO30A
3MEM T&T10A
4SDAR5A
5DRV MDL10A
6HTDST LR10A
7PWR T&T30A
8SIR15A
10LP PK R15A
11VENT SOL10A
12IGN 110A
13LP PK L15A
14DIMR10A
15NAV10A
16HTDST LF10A
17EXPORT LST15A
18RRDR MDL10A
19STOP LP15A
20NSBU10A
21AUDIO15A
22RAP20A
25PASSMDL10A
26BODY15A
27INT LP10A
28RR BLO10A
29IGN SW15A
31HTDST RF10A
32CVRTD10A
33HVAC10A
34IGN 3 RR10A
35ABS10A
36TS1G/HAZ15A
37HTDST RR10A
38DIM10A
MICRO RELAYS
39F/PMP
40PRK LP
41IGN 1
42PRK BRK A
43PRK BRK B
44PARK
45REVERSE
46RAP
47RR BLD
49IGN 3
50F/TNKDR REL
51INT LP
52TRK REL
53FRT CTSY
54RR CTSY
55ELC
56PWR SEAT30A
57PWR WDO30A
BREAKERS
58CIGAR
69RR DEFOG
MINI RELAYS
60PARK BRK20A
61RR DEFOG40A
62EXPORT BRK25A
63AUDIO AMP30A
64ELC30A
65CIGAR40A
NOT USED
9--
23--
24--
30--
48--
66--
SPARE FUSES
67-
68-
69-
70-
71-
72-
73-
74-
75-

Cadillac Allante 1992 Main Fuse Panel/Board – Fuse Symbol Map
