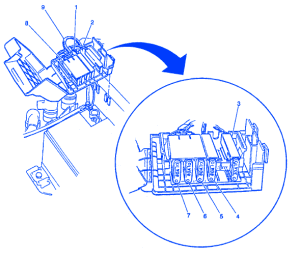

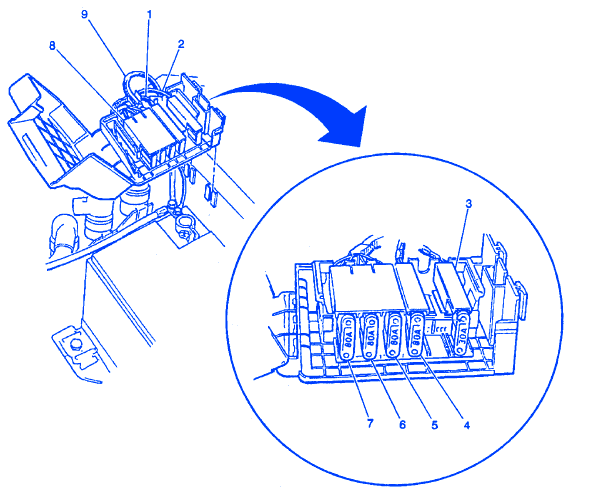

Cadillac Catera 1997 Fuse Box/Block Circuit Breaker Diagram
| Symbol | Description |
|---|---|
| 1 | Body Wiring Harness |
| 2 | Power Distribution Fuse Block |
| 3 | Fuse V5 (30A) |
| 4 | Fuse V4 (80A) |
| 5 | Fuse V1 (80A) |
| 6 | Fuse V3 (80A) |
| 7 | Fuse V2 (80A) |
| 8 | Instrument Panel Wiring Harness |
| 9 | Positive Battery Cable |
Cadillac Catera 1997 Fuse Panel/Board – Fuse Symbol Map
