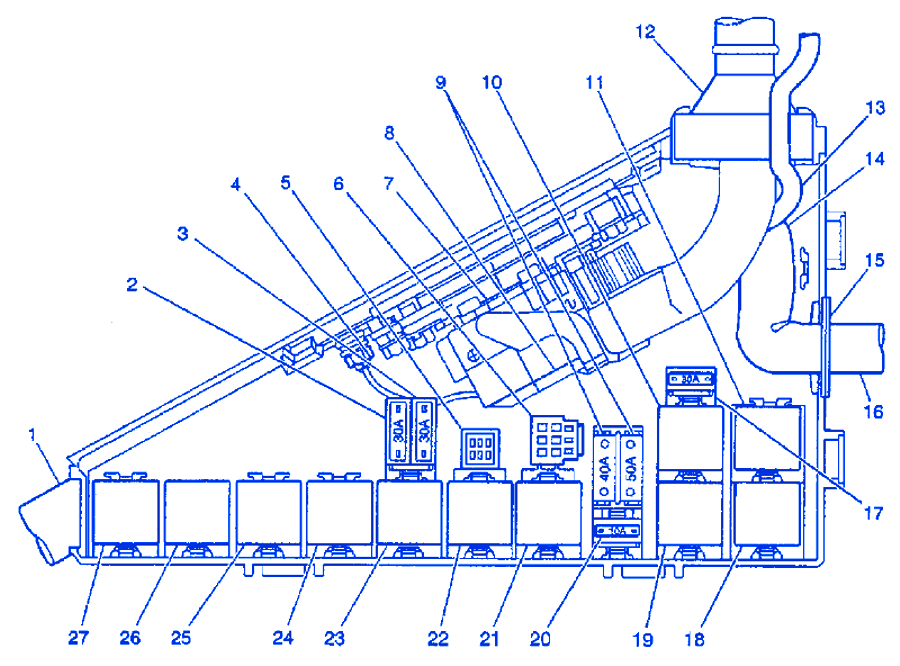

Cadillac Catera 2009 ABS Fuse Box/Block Circuit Breaker Diagram
| SYMBOL | DESCRIPTION |
|---|---|
| 1 | Additional Harness |
| 2 | Fuse #40 (30A) |
| 3 | Fuse #52 (30A) |
| 4 | ECM Ground |
| 5 | Connector C110 |
| 6 | Coolant Fan Test Connector |
| 7 | ECM Module |
| 8 | ECM Connector C1 |
| 9 | A Fuse #42 (40A) B Fuse #49 (50A) |
| 10 | Fan Cotrol Relay K28 (Orange) |
| 11 | Fuel Pump Relay k44 (Violet) |
| 12 | P108 |
| 13 | Additional Harness to Battery |
| 14 | Instrument Panel Wiring Harness |
| 15 | P104 |
| 16 | I/P Harness |
| 17 | Fuse #43 |
| 18 | Engine Control Power Relay K43 (Violet) |
| 19 | Fan Control Relay K52 (Brown) |
| 20 | Fuse #50 (fo Relays K26 & K48) |
| 21 | Fan Control Relay K26 (Gray) |
| 22 | Fan Control Relay K87 (Green) |
| 23 | A/C Compressor Relay K60 (Green) |
| 24 | Windshield Wiper Motor Relay K8 (Yellow) |
| 25 | Auxiliary Water Pump Relay K22 (White) |
| 26 | Fan Control Relay K67 (Blue) |
| 27 | Secondar Air Injection Pump Relay K12 (Brown) |
Cadillac Catera 2009 ABS Fuse Panel/Board – Fuse Symbol Map
