Cadillac CTS-V 2010 Engine Compartment Fuse Box/Block Circuit Breaker Diagram

Cadillac CTS-V 2010 Engine Compartment Fuse Box/Block Circuit Breaker Diagram



MINI-FUSESUSAGE
A/C CLTCHAir Conditioning Clutch
ABSAntilock Braking System (ABS)
AFSAdaptive Forward Lighting System
AIRBAG IGNAirbag Switch
AQS/ISRVM/REAR CAMERAAir Quality Sensor/Inside Rear View Mirror/Rear View Camera
BCM1Body Control Module 1
BCM2Body Control Module 2
BCM3Body Control Module 3
BCM4Body Control Module 4
BCM5Body Control Module 5
BCM6, BCM7Body Control Module 6 and 7
DISPLYDisplay
DRL LTLeft Daytime Running Lamps
DRL RTRight Daytime Running Lamp (DRL)
DRL/WSWLeft Daytime Running Lamps/Windshield Washer Pump
ECMEngine Control Module (ECM)
ECM/TCM IGNECM Transmission Control Module (TCM), Instrument Panle Cluster (IPC), Pass Key III+ Module
EMIS 1Emission 1
EMIS 2Emission 2
EVEN COILSEven Coils
FRT FOGFront Fog Lamps
HDLP WASHHeadlamp Washer
HORNHorn
INTCLRIntercooler Pump
LT HI BEAMLeft High Beam Headlamp
LT LO BEAMRight Low Beam Headlamp
LTRCigarette Lighter
MISC IGNIgnition
NAV MTRNavigation Motor
ODD COILSOdd Coils
PED PRONot Used
PWR MODINGPasskey Module, Body Control Module
RT HI BEAMRight High Beam Headlamp
RT LOW BEAMRight Lo Beam Headlamp
SPARESpare
STR/WHL/CNTRLSteering Wheel Ilummination
S/ROOFSunroof
TCM BATTTransmissiion Control Module Battery
WPRWindshield Wiper

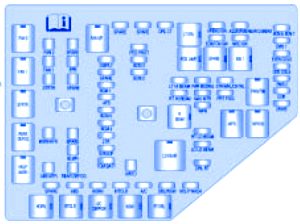

Cadillac CTS-V 2010 Engine Compartment Fuse Panel/Board – Fuse Symbol Map
