Cadillac CTS Wagon 2010 Rear Compartment Fuse Box/Block Circuit Breaker Diagram

Cadillac CTS Wagon 2010 Rear Compartment Fuse Box/Block Circuit Breaker Diagram



FUSEUSAGE
FUSES
FUEL/DR/RELSENot Used
LCKLock
LT/POS/LPLeft Position Lamp
MRKR/LPNot Used
REAR/FOGNot Used
RT/POS/LPNot Used
STOP/LPNot Used
TRUNK/RELSETrunk Release
UNLCKUnlock
MINI FUSES
AIRBAGAirbag System
AMPAmplifier
AUX/OUTLETAuxiliary Power Outlet
CNSTR/VENTCanister Vent
DR/LCKDoor Lock
ECMEngine Control Module (ECM)
FUEL/PUMPFuel Pump
LT/POS/LPLeft Position Lamp
MSMMemory Seat Module
ONSTAROnstar System
PDMPassenger Door Module
RDOAudio System
RDO/SPKRAudio Speakers
REAR/FOGNot Used
REAR/WSWRear Windshield Wiper/Washer
RKE/PASSKEY/MDLRemote Keyless Entry System, Pass-key Theft Deterrent Feature Module
RT/POS/LPNot Used
RT/POS/LPRight Position Lamp
RVC/SNSRRegulated Voltage Control Sensor
S/ROOFSunroof
STOP/LPNot Used
THEFT/UGDOTheft Deterrent System, Universal Home Remote System
TRLR/POS/LPTrailer Turn Position Lamps
WASH/PUMPWindshield Washer Pump

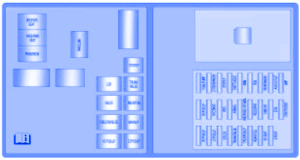

Cadillac CTS Wagon 2010 Rear Compartment Fuse Panel/Board – Fuse Symbol Map
