Cadillac Escalade 2008 Instrument Panel Fuse Box/Block Circuit Breaker Diagram
| FUSE SYMBOL | FUSE MAP |
|---|---|
| 1 | Rear Seats |
| 2 | Rear Accessory Power Outlet |
| 3 | Steering Wheel Coontrol Backlight |
| 4 | Driver Door Module |
| 5 | Dome Lamps, Driver Side Turn Signal |
| 6 | Driver Side Turn Signal, Stop Lamp |
| 7 | Instrument Panel Back Lighting |
| 8 | Passenger Side Turn Signal, Stop Lamp |
| 9 | Passenger Door Module, Universal Home Remote System |
| 10 | Power Door lock 2(Unlock Feature) |
| 11 | Power Door lock 2(Lock Feature) |
| 12 | Stop Lamps, Center High Mounted Stop Lamp |
| 13 | Rear Climate Controls |
| 14 | Not Used |
| 15 | Body Control Module (BCM) |
| 16 | Accessory Power Outlets |
| 17 | Interior Lamps |
| 18 | Power Door Lock 1(Unlock Feature) |
| 19 | Rear Seat Entertainment |
| 20 | Ultrasonic Rear Parking Assist, Power Liftgate |
| 21 | Power Door Lock 1(Lock Feature) |
| 22 | Driver Information Center (DIC) |
| 23 | Rear Wiper |
| 24 | Not Used |
| 25 | Driver Seat Module, Remote Keyless Entry System |
| 26 | Not Used |

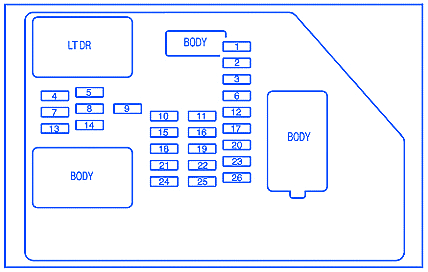

Cadillac Escalade 2008 Instrument Panel Fuse Panel/Board – Fuse Symbol Map
