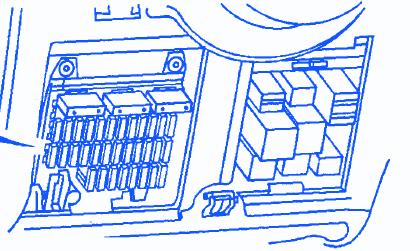

Cadillac Krystall Koach 1999 Under Dash Fuse Box/Block Circuit Breaker Diagram

Cadillac Krystall Koach 1999 Under Dash Fuse Box/Block Circuit Breaker Diagram



SYMBOLDESCRIPTION
1PWF
2CLAMP 15 A/T
3FLASHER
4HTDSEAT REAR
5CLAMP 30 A/T
6AUDIO
7PWR
8RADIO BATT GUARD
9WIPER
10CLAMP 15a
11HTD MIRROR
12HZD
13O/S MIRROR
14CLAMP 15
15CLAMP 15 CRUISE
16CIG
17HORN
18FUEL PUMP
19ABS
20HTD SEAT FRONT
21HI BEAM LH
22LO BEAM LH
23PRK LP LH
24CLAMP W PBSL
25SUN ROOF
26CLAMP 5a
27ALC
28DOORLOCK
29DOME LAMP
30PRK LP RH
31LO BEAM RH
32HI BEAM RH
33HEATER BLOWER
34RR WDO DEFOG
35PWR SEAT

Cadillac Krystall Koach 1999 Under Dash Fuse Panel/Board – Fuse Symbol Map
