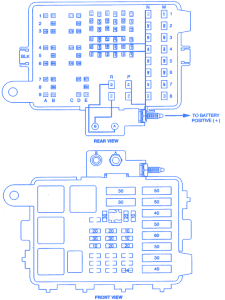

Chevrolet 4wd 1500 Pickup 1998 Fuse Box/Block Circuit Breaker Diagram

Chevrolet 4wd 1500 Pickup 1998 Fuse Box/Block Circuit Breaker Diagram



NameFuse No.SizeCircuitLoads
HEATED SEATSM1-N140A742Heated Seats
STOPM2-N230A Maxi fuse642Stop,Lps(Pickup Only)
A/CM3-N350A Maxi Fuse542Hi Blower Motor Relay and Rear Blower Relay (Suburban)
ABSM4-N460A Maxi Fuse442Electronic Brake Control Module (EBCM)
IGN-BM5-L550A Maxi Fuse342IGN-B Switch go to Fuse Block Bus Bar
IGN-AM6-N640A Maxi Fuse242IGN-A Switch go to Fuse Block Bus Bar
BATTERYM7-N750A Maxi Fuse142Fuse Block Bus Bar, Battery
LIGHTINGM8-N850A Maxi Fuse42HDLP & Panel Dimmer SW, FOG and CTSY Fuses
A/C COMPK11-L1210A Fuse1240A/C Press Sw to A/C Clutch
HORNH11-J1220A Fuse740Horn Relay, Underhood LPS
ECM-BF11-G1220A Fuse440Fuel Pump, PCM/VCM
AUX FANJ10-H930A Fuse1540AUX FAN
RR DEFOGG10-F930A Fuse1440RR Defog
ECM-IK7-L820A Fuse539IGN-A Switch to Engine Loads, EGR, Canister Purge, EVRV IDLE Coast Solenoid, Heated O2 Sensors, Fuel Heater, Water Sensor, Mass Airflow Sensor, VCM
ECM 1J8-H720A Fuse439Injectors PCM/VCM, IGN Coil and Module
IGN-EG8-F710A Fuse639Aux Fan Relay Coil, A/C Comp Relay, Fuel Module, Dual Tank
FUEL SOLF5-G620A Fuse639,339Fuel Solenoid, Diesel Eng
GLOW PLUGSG4-F310A Fuse507/503Glow Plugs
Diode-IL2-K1BRAKE33-680Electronic Brake Control Module
STUD"A"R7-P730AAUX A
STUD"B"R8-P830ACamper/Trailer WRG

Chevrolet 4wd 1500 Pickup 1998 Fuse Panel/Board – Fuse Symbol Map
