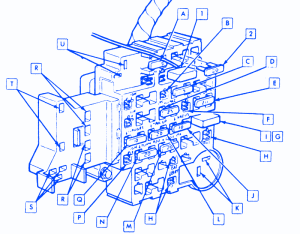

Chevrolet Caprice Classic Brougham 1987 Fuse Box/Block Circuit Breaker Diagram

Chevrolet Caprice Classic Brougham 1987 Fuse Box/Block Circuit Breaker Diagram



SYMBOLDESCRIPTION
1Circuit Breaker
2Fuse Assembly and L22
AFuse-Inst Panel Lamps
BReceptacle-Lamps
CFuse-Heater and A/C (C60)
DFuse-Windshield Wiper
EFuse-Stop and Traffic Hazard Lamps
FReceptacle-Accessory
GPower-Accessory
HReceptacle-Battery
JFuse-Radio (U63)
KReceptacle-Directional Signal Lamp Flasher
LFuse-Tail Lamps
MFuse-Clock, Cigarette Lighter and Courtesy Lamps
NFuse-Directional Signal and Back-Up Lamps
PReceptacle-Cruise Control (K30) Rear Window Defogger (C50) (All Ignition Control)
QFuse-Gauges
RReceptacle-Seat Belt Buzzer
SReceptacle-Horn Relay
TReceptacle-Ignition Key Lock Warning Buzer
UReceptacle-Traffic Hazard Flasher

Chevrolet Caprice Classic Brougham 1987 Fuse Panel/Board – Fuse Symbol Map
