Chevrolet Corvette 2013 Instrument Fuse Box/Block Circuit Breaker Diagram

Chevrolet Corvette 2013 Instrument Fuse Box/Block Circuit Breaker Diagram



FUSEFUNCTION
BCK/UP LAMPReverse Lamps
BLANKNot Used
BLANKNot Used
BTSI SOL/STR WHLBrake Transmission Shift Interlock, Steering Wheel Column
LCKLock
CLSTR/HUDCluster, Heads-Up Display
CRUISE SWITCHCruise Control Switch
CTSY/LampCourtesy Lamp
DR LCKDoor Locks
DRIV DR SWITCHDriver Door Switch
ECMEngine Control Module (ECM)
EXH MDLExhaust Module (Z06), Spare (Coupe and Convertible)
GM LAN RUN/CRNKGM LAN Devices
HTD SEAT/WPR RLYHeated Seat, Wiper Relays
HVAC/PWR SNDHeating, Ventilation/Air Conditioning, Power Sounder
IGN SWTCH/INTR SNSRIgnition Switch, Instrusion Sensor
ISRVM/HVACElectric Inside Rearview Mirror, Heating, Ventilation, Air Conditioning
ONSTAROnStar
RDO/S-BAND/VICSRadio, S-Band, VICS
REAR FOG/ALDL/TOP/SWTCHRear Fog Lamp, Assembly Line Diagnostic Link
SWTCHConnector, Convertible Top Switch
REVERSE LAMPSReverse Lamps
RUN CRNKRun/Crank Relay
SDM/AOS SWTCHSensing and Diagnostic Module Automatic Occupant
AIRBAGSensing Module, Airbag
SPARESpare
SPARESpare
SPARESpare
SPARESpare
STOP LAMPStop lamp
SWC DMSteering Wheel Dimming
TELE SWTCH/MSMTelescope Switch, Memory Seat Module
TONNEAU RELSETonneau Release
TPATonneau Pulldown Actuator
BLANKBlank
BLANKBlank
FUEL DR RELSEFuel Door Release
REAR/FOGRear Fog Lamps
TONNEAU RELSETonneau Release
TRUNK RELSETrunk Release
AUX PWRAuxiliary Power

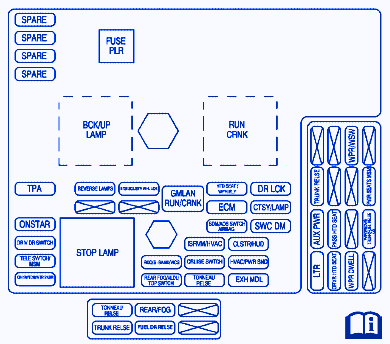

Chevrolet Corvette 2013 Instrument Fuse Panel/Board – Fuse Symbol Map
