Chevrolet Corvette Coupe 1998 Fuse Box/Block Circuit Breaker Diagram
| SYMBOL | DESCRIPTION |
|---|---|
| Mini Fuse | |
| 1 | Console Cigarette Lighter |
| 2 | Monitored (Inadvertent)Load Control |
| 3 | Lumbar Seat |
| 4 | Driver Seat Control Module |
| 5 | Radio, |
| 6 | Parking Lamps,Taillamps |
| 7 | Cigarette Lighter |
| 8 | Stoplamp, Hazard Flashers |
| 9 | Body Control Module |
| 10 | Windshield Wiper/Washer |
| 11 | Accessory Power |
| 12 | Blank |
| 13 | Body Control Module-Ignition 1 |
| 14 | Crank |
| 15 | Hazard/Turn Signal |
| 16 | Air Bag |
| 17 | Blank |
| 18 | HVAC Controls |
| 19 | Instrument Panel Control |
| 20 | Cruise Control |
| 21 | Brake Transmission Shift InterLock |
| 22 | Body Control Module-Ignition 3 |
| 23 | Body Control Module-Ignition 2 |
| 24 | Radio Antenna |
| 25 | Body Control Module-Ignition 1, Instrument Panel Control |
| 26 | Hatch/Trunk Release |
| 27 | HVAC Controls |
| 28 | Bose Speakers |
| 29 | Diagnostic |
| 30 | Right Door Control Module |
| 31 | Power Feed Door Right |
| 32 | Fuel Tank Door |
| 33 | Door Control Module Left |
| 34 | Power Feed Door Left |
| Circuit Breaker | |
| 35 | Driver Power Seat |
| 36 | Passenger Power Seat |
| Micro Relay | |
| 37 | Monitored (Inadvertent) Load Control |
| 38 | Right Daytime Running Lamp |
| 39 | Hatch/Trunk Release |
| 40 | Left Daytime Running Lamp |
| 41 | Blank |
| 42 | Courtesy Lamps |
| Mini Relay | |
| 43 | Speakers |
| 44 | Rear Defogger |
| MaxiFuse | |
| 45 | Ignition 2 |
| 46 | Rear Defogger |
| 47 | Blank |
| 48 | Ignition |
| 49 | Blower Motor |
| 50 | Starter |
| 51 | Blank |
| Maxi Circuit Breaker | |
| 52 | Headlamps |

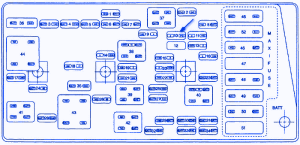

Chevrolet Corvette Coupe 1998 Fuse Panel/Board – Fuse Symbol Map
