Chevrolet Express 1500 2003 Under Driver Seat Fuse Box/Block Circuit Breaker Diagram

Chevrolet Express 1500 2003 Under Driver Seat Fuse Box/Block Circuit Breaker Diagram

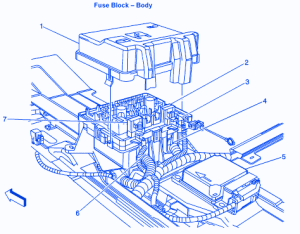

SYMBOLDESCRIPTION
1Fuse Block Body - Cover
2Fuse Block Body - C4 (YF7)
3Fuse Block Body - C3
4Fuse Block Body - C1
5Inflatable Restraint Sensing and Diagnostic Module (SDM)
6Fuse Block Body - C2
7Fuse Block Body - C5 (YF7)

Chevrolet Express 1500 2003 Under Driver Seat Fuse Panel/Board – Fuse Symbol Map
