Chevrolet Falcon 1992 Front Electrical Circuit Wiring Diagram
| SYMBOL | DESCRIPTION |
|---|---|
| 1 | Water Temperature Switch |
| 2 | Water Temperature Switch |
| 3 | Backup Light Switch ( M / T ) |
| 4 | Neutral Start Switch ( A / T ) |
| 5 | Washer Valve |
| 6 | Headlight Relay (In Relay Block) |
| 7 | Fan Relay (In Relay Block) |
| 8 | A/C Relay (In Relay Block) |
| 9 | A/C Relay (In Relay Block |
| 10 | Main Relay (In Relay Block) |
| 11 | Oil Pressure Switch |
| 12 | Water Temperature Sender |

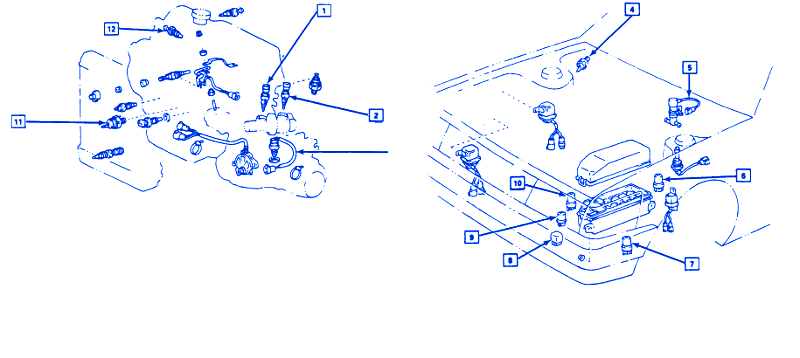

Chevrolet Falcon 1992 Front Electrical Circuit Symbol Map
