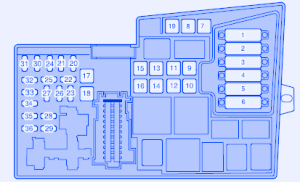

Chevrolet Heritage 2008 High Roof Main Fuse Box/Block Circuit Breaker Diagram

Chevrolet Heritage 2008 High Roof Main Fuse Box/Block Circuit Breaker Diagram



FusesUsageAmpere
1Coolant Fan (Radiator)50A
2Power Steering80A
3Feed to Passenger Compartment Fuse Box60A
4Feed to Passenger Compartment Fuse Box60A
5Element, Climate Unit80A
6Not in Use-
7ABS Pump30A
8ABS Valve20A
9Engine Functions30A
10Climate System Blower40A
11Headlight Washers20A
12Feed to Heated Rear Window30A
13Starter Motor Relay30A
14Trailer Connector (Accessory)40A
15Not in Use-
16Feed to Audio System30A
17Windshield Wipers30A
18Feed to Passenger Compartment Fuse Box40A
19Not In Use-
20Horn15A
21Not In Use-
22Not In Use-
23Engine/Transmission Control Module10A
24Not In Use-
25Not In Use-
26Ignition Switch15A
27A/C Compressor10A
28Not In Use-
29Front Fog Lights15A
30Not In Use-
31Not In Use-
32Fuel Injectors10A
33Heated Oxygen Sensor, Vacuum Pump20A
34Ignition Coils, Climate Unit Pressure Sensor10A
35Engine Sensor Valve, A/C Relay, Relay Coil, PTC Element Oil Trap, Canister, Mass Air Meter15A
36Engine Control Module, Throttle Sensor10A

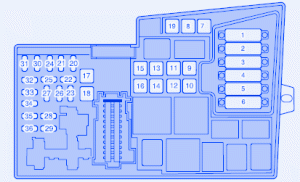

Chevrolet Heritage 2008 High Roof Main Fuse Panel/Board – Fuse Symbol Map
