Chevrolet HHR 2006 Front Engine Fuse Box/Block Circuit Breaker Diagram

Chevrolet HHR 2006 Front Engine Fuse Box/Block Circuit Breaker Diagram



SYMBOLDESCRIPTIONAMPS
1EPS60A
2REAR DEFOG40A
3EMPTY
4BCM 330A
5CRNK30A
6BCM 240A
7EMPTY
8EMPTY
9DIODE A/C CLTCH
10L/GATE/S ROOF20A
11EMPTY
12EMPTY
13FUEL PUMP15A
14REAR DEFOG Relay
15A/C CLTCH Relay
16EMPTY
17REAR WPR Relay
18L/GATE RELSE Relay
19FUEL PUMP Relay
20REAR WPR15A
21MIR5A
22A/C10A
23HTD/SEAT20A
24EMPTY
25FUSE PULLER
26PWR/TRN Relay
27EMPTY
28EMPTY
29LTR15A
30PWR OUTLET20A
31EMPTY
32EMPTY
33EMISSIONS10A
34CRNK Relay
35EMPTY
36EMPTY
37PWR SEAT30A
38EMPTY
39WSW PUMP Relay
40COOL FAN30A
41EMPTY
42ECM15A
43ECM TRANS15A
44ABS30A
45INJ IGN MDL10A
46PRK/NEUT10A
47HTD/SEAT/BCK/UP10A
48REAR WSW Relay
49WSW PUMP15A
50COOL FAN Relay
51RUN/CRNK Relay
52WPR Relay
53FOG LAMP15A
54FOG LAMP Relay
55HORN Relay
56S BAND ONSTAR10A
57ABS10A
58DIODE WPR
59WPR25A
60HORN10A
61ABS20A
62I/P IGN20A
63LT HI BEAM10A
64CNSTR VENT10A
65LT LO BEAM10A
66RT LO BEAM10A
67RT HI BEAM10A
68PRK LAMPS Relay
69PRK LAMPS10A
70WPR Relay
71LO BEAM Relay
72HI BEAM Relay

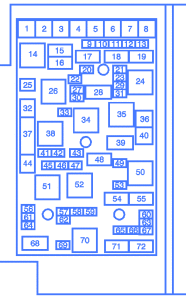

Chevrolet HHR 2006 Front Engine Fuse Panel/Board – Fuse Symbol Map
