Chevrolet Impala 2001 Crank Fuse Box/Block Circuit Breaker Diagram

Chevrolet Impala 2001 Crank Fuse Box/Block Circuit Breaker Diagram



FUSE SYMBOLAMPS
BLOWER MOTOR30A
HORN RLY15A
FOG RLY10A
F/PMP RLY15A
DRL/EXT LTS15A
EXT LTS10A
PCM15A
A/C RLY (CMPR)10A
LEFT I/P60A
RT I/P #160A
RT I/P #260A
U/HOOD #160A

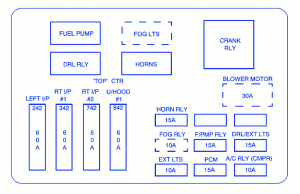

Chevrolet Impala 2001 Crank Fuse Panel/Board – Fuse Symbol Map
