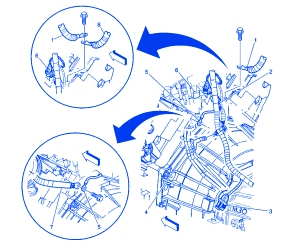

Chevrolet Kodiak C4500 2009 Engine Part Electrical Circuit Wiring Diagram
| Symbol | Description |
|---|---|
| 1 | Ground 103 (G103) |
| 2 | Engine Hamess H02S |
| 3 | HO2 Sensor Connector Bank 1, Sensor 1 |
| 4 | Fuel Line Bracket |
| 5 | Ground 104 (G104) |
| 5 | Ground 104 (G104) |
| 6 | Oil Pressure Sensor Connector |
| 6 | Oil Pressure Sensor |
| 7 | Engine Ground Strap (G107) |
| Chevrolet Kodiak C4500 8 | TP 1 Battery Cable (G106) |
Chevrolet Kodiak C4500 2009 Engine Part Electrical Circuit Symbol Map
