Chevrolet Lumina 1993 Center Fuse Box/Block Circuit Breaker Diagram
| Symbol | Amps | Description |
|---|---|---|
| Fuse Identification | ||
| 1 | 20A | Air Pump (3.5L Manual) |
| 2 | 15A | Trunk Release, Back-Up Lights |
| 3 | - | Not Used |
| 4 | Service 3.4L DOHC V6 | |
| 5 | Service 3.4L DOHC V6 | |
| 6 | 4A | Injectors (4-Cylinder Engine) |
| 7 | 10A | Direct Ignition System |
| 8 | 10A | Injector (3.1L V6 Engine) |
| 9 | Not Used | |
| 10 | 15A | Ignition System |
| 11 | 10A | Ignition |
| Relay Indentification | ||
| 12 | Air Pump Relay (3.4L DOHC V6) | |
| 13 | Not Used | |
| 14 | Heavy Duty Cooling Fan Relay | |
| 15 | Cooling Fan Relay | |
| 16 | A/C Compressor Clutch Relay | |
| Maxi-Fuse Indentification | ||
| 17 | 60A | Starter Solenoid |
| 18 | 30A | Cooling Fan (2.5L & Amp 3.1L) |
| 60A | Cooling Fan (3.4L DOHC V6) | |
| 19 | 60A | High Blower |
| 20 | 60A | Cooling Fan |
| 21 | 30A | Ignition |

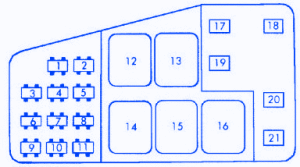

Chevrolet Lumina 1993 Center Fuse Panel/Board – Fuse Symbol Map
