Chevrolet Lumina Van 3.1 1990 Fuse Box/Block Circuit Breaker Diagram

Chevrolet Lumina Van 3.1 1990 Fuse Box/Block Circuit Breaker Diagram



FUSERATING (AMPS)CIRCUITRY
CTSY10AI/P Compartment Lamp, Dome Lamps, Courtesy Lamps, Underhood Lamp, Reading Lamps, Door Locks Switches, Key Lock Switches
ECM10AFuel Injectors, Electronic Control Module, Electronic Spark Control Module, EGR Electronic Vacuum Regulator Valve
ELEC25ARear Cigar Lighter, Electronic Level Control
F-PUMP10AFuel Pump Relay, Fuel Pump, Oil Pressure Sender/Fuel Pump Switch
F-WIPER25AWindshield Wiper/Washer Switch, Windshield Wiper Motor Module
GAGES7.5AInstrument Cluster, Transaxle Converter Clutch Solenoid, Daytime Running Lamps, Electronic Level Control Hight Sensor
HORN15AHorn, Audio Alarm Module
HTR-A/C25AAuxiliary Blower Motor, Blower Motor Low Speed Relay
IGN10AA/C Compressor relay, Audio Alarm Module, Cooling Fan relay, Cruise Control, Daytime Running Lamps, Generator, Heater and A/C Control Assembly, Solenoid Box, Temperature Door Actuator, Vehicle Speed Sensor Bufer, Rear Window Defogger Relay
LPS7.5AIllumination Bulbs, Ashtray, Auxiliary Blower Switch, Door Lock Switches, Heater and A/C Control Assembly, Instrument Cluster, Headlamp Switch, Radio, Rear Window Wiper/Washer Switch, Window Switches
RDO-125ARadio, Cigar Lighter
RDO-215ARadio
R-WIPER20ARear Window Wiper/Washer Switch, Rear Window Wiper Motor
STOP-HAZ15AFront Marker Lamps, Front Turn Lamps, Rear Stop/Turn Lamps, Instrument Cluster Turn Indicators
TAIL15AFront Park Lamps, Front Marker Lamps, Taillamps, License Lamp, Rear Marker Lamps, LPS Fuse
TURN B/U15AInstrument Cluster Turn Indicators, Front Marker Lamps, Front Turn Lamps, Rear Stop/Turn Lamps, Backup Lamps

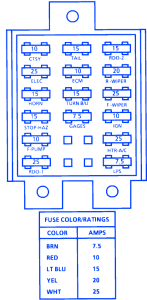

Chevrolet Lumina Van 3.1 1990 Fuse Panel/Board – Fuse Symbol Map
