Chevrolet Orlando 2011 Instrument Fuse Box/Block Circuit Breaker Diagram
| FUSES | USAGE |
|---|---|
| AUDIO | Audio, Clock, Immobilizer |
| AUDIO / RKE | A / C Switch, Clock, Power MirrorUnit, Audio, Anti-Theft Module, TPMS |
| B/UP LAMP | NP Switch, Reverse Lamp Switch |
| -BLANK- | -Not Used |
| BLANK | Not Used |
| BLANK | Not Used |
| CIGAR | Cigar Lighter |
| CLUSTER | Brake Switch, TPMS, Anti-Theft Module |
| DEFOG MIRROR | Power Mirror Unit, A/C Switch |
| RR DEFOG | Rear Defog |
| DOOR LOCK | Door Lock |
| NA DRL | NA DRL Circuit |
| MIRROR / SUNROOF | Mirror Control Switch, Room Lamp, A / C Switch |
| EMS 1 | Engine Room Fuse Block, TCM, VSS, Fuel Pump |
| EMS 2 | Stop Lamp Switch |
| HORN | Horn |
| OBD | DLC, Immobilizer |
| CLUSTER / ROOM LAMP | Trunk Room Lamp, Trunk Open Switch, IPC, Room Lamp |
| SDM | Sensing and Dianostic Module |
| SOKET | Power Jack |
| STOP LAMP | Brake Switch |
| SUNROOF | Sunroof Module (Option) |
| T/ SIG | Hazard Switch |
| Wiper | Wiper Switch, Wiper Motor |

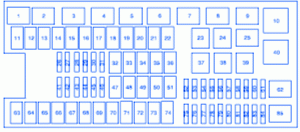

Chevrolet Orlando 2011 Instrument Fuse Panel / Board – Fuse Symbol Map
