Chevrolet Silverado 2500 HD 2007 Electrical Circuit Wiring Diagram

Chevrolet Silverado 2500 HD 2007 Electrical Circuit Wiring Diagram

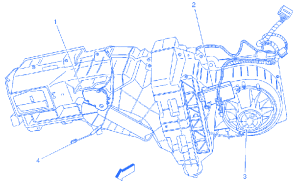

SYMBOLDESCRIPTION
1Air Temperature Actuator - Left
2Blower Motor Control Processor
3Blower Motor
4Air Temperature Sensor Connector-Lower Right

Chevrolet Silverado 2500 HD 2007 Electrical Circuit Symbol Map
