Chevrolet Suburban 1993 Engine Fuse Box/Block Circuit Breaker Diagram

Chevrolet Suburban 1993 Engine Fuse Box/Block Circuit Breaker Diagram

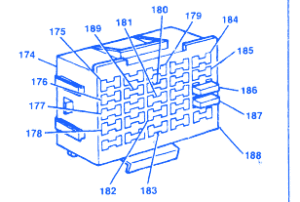

Fuse SymbolAmpsFuse Map
174--
17520ACruise Control Timer, Rear Window Defogger Feed, Auxillary Battery Relay Alarm, Seat Belt Feed, Cluster Ignition
17615ALamps, Backup Signals, Directional
17710AClutch, Torque Converter Diverter, Air Injection Reactor Control, Electronic Spark Recirculator, Exhaust Gas Module, Electronic Control (Ignition) Brake Switch, Anti-Lock
17810AInjectors, Throtle Body
17925AHeating Ventilation Air Conditioning Four Wheel Drive Battery, Auxillary
18020ALamp Cargo, Lamp Dome, Lamp Courtesy, Lamp Glove Box Radio (Memory Clock)
18120ARelay Horn Feed, Horn Lighter Cigar, Lamps Park
18220ASwitch, Rear Window Defogger Headlamp ON Warning, Radio Illumination, Heating, Ventilation, Air Conditioning Illumination
18315AFlasher, Hazard Alarm, Seat Belt, Lamps Stop
18425AWiper/Washer
18510AFeed, Radio
186Circuit Breaker (C.B)Windows power
187Circuit Breaker (C.B)Locks, Power Door, Defogger, Rear Window
1885ACrank
18915ASpeedometer

Chevrolet Suburban 1993 Engine Fuse Panel/Board – Fuse Symbol Map
