Chevy Avalance 2004 Fuse Box/Block Circuit Breaker Diagram
| DESCRIPTION | AMPS |
|---|---|
| PCM/BCM/CLSTR | 10A |
| PCM(CRANK) | 10A |
| ABS/PCM | 10A |
| CRUISE | 2A |
| DR LK | 20A |
| LH HTD ST/BCM | 15A |
| CIG/AUX | 10A |
| STOP | 10A |
| A/C/CRUISE | 10A |
| PWR MIR | 2A |
| WSW | 25A |
| BCM | 10A |
| SRS | 10A |
| TURN SIGNAL | 15A |
| A/C FAN | 20A |
| STR COL | 2A |
| CLSTR/BCM | 10A |
| RETAINED ACCSRY PWR RELAY | |
| HEADLAMP RELAY | |
| RETAINED ACCSRY PWR BRKR | 30A |

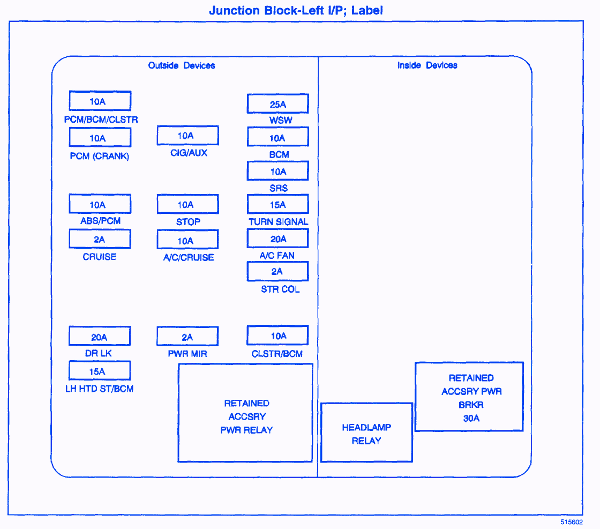

Chevy Avalance 2004 Fuse Panel/Board – Fuse Symbol Map
