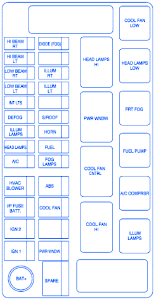

Chevy Aveo 2007 Hatchback Engine Compartment Fuse Box/Block Circuit Breaker Diagram
| FUSE MAP | AMPS |
|---|---|
| HI BEAM RT | 10A |
| HI BEAM LT | 10A |
| LOW BEAM RT | 10A |
| LOW BEAM LT | 10A |
| INT LTS | 10A |
| DEFOG | 30A |
| ILLUM LAMPS | 20A |
| HEAD LAMPS | 25A |
| A/C | 10A |
| HVAC BLOWER | 30A |
| I/P FUUSE BATT | 30A |
| IGN 2 | 30A |
| IGN 1 | 30A |
| ILLUM RT | 10A |
| ILLUM LT | 10A |
| S/ROOF | 20A |
| HORN | 10A |
| FUEL | 15A |
| FOG LAMPS | 15A |
| ABS | 50A |
| COOL FAN | 30A |
| PWR WNDW | 30A |
Chevy Aveo 2007 Hatchback Engine Compartment Fuse Panel/Board – Fuse Symbol Map
