Chevy Impala 2004 Interior Driver’s Side Fuse Box/Block Circuit Breaker Diagram
| NO. | AMPS. | CIRCUITS PROTECTED |
|---|---|---|
| 1 | 15A | IG1 Fuel Pump |
| 2 | 10A | IG1 SRS |
| 3 | 7.5A | IG2 HAC |
| 4 | 7.5A | IG2 Mirror |
| 5 | 7.5A | IG2 Day Light |
| 6 | 15A | ECU (ECM/PCM), Cruise Control |
| 7 | 7.5A | IG1 Moonroof, Washer |
| 8 | 7.5A | ACC |
| 9 | 7.5A | Instrument Panel, Back-Up Light |
| 10 | 7.5A | IG1 Turn Signal |
| 11 | 15A | IG1 Coil |
| 12 | 30A | IG1 Wiper |
| 13 | 7.5A | STS |

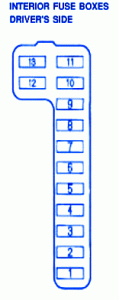

Chevy Impala 2004 Interior Driver’s Side Fuse Panel/Board – Fuse Symbol Map
