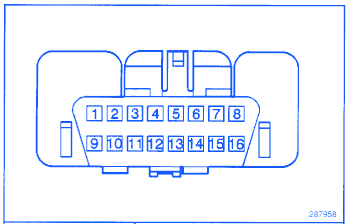

Chevy Metro 2000 Connector Electrical Circuit Wiring Diagram

Chevy Metro 2000 Connector Electrical Circuit Wiring Diagram



PinWire ColorFunction
1-3-Not Used
4BLKGround
5BLK/BLUGround
6-Not Used
7PPL/WHTSerial Data
8-Not Used
9PPLSerial Data
10-15-Not Used
16WHTBattery Positive Voltage

Chevy Metro 2000 Connector Electrical Circuit Symbol Map
