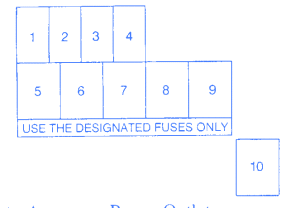

Chevy Tracker 1999 Under The Hood Fuse Box/Block Circuit Breaker Diagram

Chevy Tracker 1999 Under The Hood Fuse Box/Block Circuit Breaker Diagram



SYMBOLDESCRIPTION
1Accessory Power Outlet
2Electroic Fuel Injection System
3Right Headlamp
4Left Headlamp, High-Beam Indicator
5Heater
6Hazard Lamps, Rear Combination Lamps, Dome Light, Horn
7Cigar ighter, Radio, I.G.Coil, Meter, Wiper, Washer, Rear Defrost, Turn Signals, Back-Up Lamps
8Anti-Lock Brake System
9All Electrical Loads
10Air Conditioning

Chevy Tracker 1999 Under The Hood Fuse Panel/Board – Fuse Symbol Map
