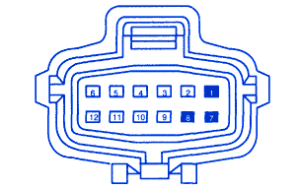

Chrysler Concorde 2006 Pin Out Electrical Circuit Wiring Diagram
| Pin | Circuit | Circuit Function |
|---|---|---|
| 1 | - | Not Used |
| 2 | 359(GY/RD) | Signal Return |
| 3 | 199(LB/YE) | Digital Transmission Range (DTR) Sensor TR3A |
| 4 | 1144(YE/BK) | Digital Transmission Range (DTR) Sensor TR1 |
| 5 | 1145(LB/BK) | Digital Transmission Range (DTR) Sensor TR2 |
| 6 | 1143(WH/BK) | Digital Transmission Range (DTR) Sensor TR4 |
| 7 | - | Not Used |
| 8 | - | Not Used |
| 9 | 295(LB/BK) | Power (Hot In Run) |
| 10 | 33(WH/PK) | Start Circuit |
| 11 | 140(BK/PK) | Reversing Lamps Feed |
| 12 | 262(BN/PK) | Start Circuit |
