Chrysler Cruser 2003 Fuse Box/Block Circuit Breaker Diagram

Chrysler Cruser 2003 Fuse Box/Block Circuit Breaker Diagram



SYMBOLDESCRIPTION
AHorn Relay
BEngine Starter Motor Relay
CFuel Pump Relay
DA/C Compressor Clutch Relay
EAutomatic Shut Down Relay
FHigh Speed Radiator Fan Relay
GTransmission Control Relay
HSpare
JSpare
Low Speed Radiator Fan Relay

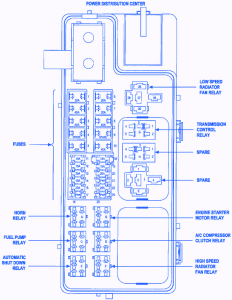

Chrysler Cruser 2003 Fuse Panel/Board – Fuse Symbol Map
