Chrysler Minivan 1994 Fuse Box/Block Circuit Breaker Diagram

Chrysler Minivan 1994 Fuse Box/Block Circuit Breaker Diagram



SYMBOLDESCRIPTION
Location 1Low Beam (Standard)
Location 2Park Lamps (Standard)
Location 3Horn (Standard)
Location 4Combo-Flashers (Standard)
Location 5Not Used
Location 6Name Brand Speakers
Location 7Rear A/C
Location 8Not Used
Location 9Heated Rear Window
Location 10Liftgate Release
Location 11Headlamp Circuit Breaker

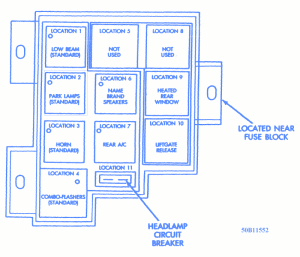

Chrysler Minivan 1994 Fuse Panel/Board – Fuse Symbol Map
