Chrysler Pacifica 2011 Module Fuse Box/Block Circuit Breaker Diagram
| Relay Map |
|---|
| Front Blower Motor Relay |
| Fuel Pump Relay |
| Run Relay |
| Transmission Control Relay |
| Rear Window Defogger Relay |
| Accessory Relay |
| Horn Relay |
| Front Wiper High/Low Relay |
| Front Wiper On/Off Relay |
| Manifold Tuning Valve Relay |
| A/C Compressor Clutch Relay |
| Auto Shut Down Relay |

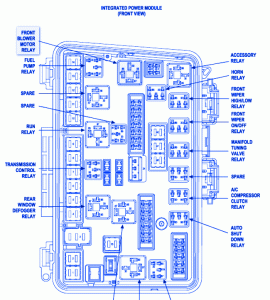

Chrysler Pacifica 2011 Module Fuse Panel/Board – Fuse Symbol Map
