Chrysler Sebring 6 cyl 2001 Fuse Box/Block Circuit Breaker Diagram

Chrysler Sebring 6 cyl 2001 Fuse Box/Block Circuit Breaker Diagram



No.Electrical SystemCapacity
1Room Lamps10A
2Radio10A
3--
4Fog Lamps15A
5Air Conditioning10A
6Headlight High Beam (Right)10A
7Headlight High Beam (Left)10A
8Headlight Low Beam (Right)10A
9Headlight Low Beam (Left)10A
10Tail Lamps (Right)10A
11Tail Lamps (Left)10A
12Not Used-
13Engine Control20A
14Hazard Warning Flasher10A
15Electric Window Control30A
16Ignition Switch30A
17Radiator Fan Motor50A
18Anti-Lock Brake System50A
19Rear Window Defroster40A

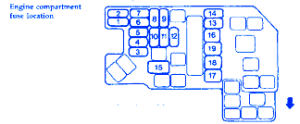

Chrysler Sebring 6 cyl 2001 Fuse Panel/Board – Fuse Symbol Map
