Citroen Berlingo 2009 Engine Fuse Box/Block Circuit Breaker Diagram
| FUSE | AMPERE RATING (A) | FUNCTIONS |
|---|---|---|
| 1 | 10A | Pre-Heat Unit (diesel)- Brake and Clutch Switches- Reversing Lights |
| 2 | 15A | Fuel Pump |
| 3 | 10A | ABS Control Unit |
| 4 | 10A | Engine Control Unit |
| 5 | - | Not Used |
| 6 | 15A | front Fog Lamps |
| 7 | 20A | Headlamp Wash Pump |
| 8 | 20A | Fan Assembly Relay - Engine Control Unit |
| 9 | 15A | Leftt-Hand Dipped Beam |
| 10 | 15A | Right-Hand Dipped Beam |
| 11 | 10A | Left-Hand Main Beam |
| 12 | 10A | Right-Hand Main Beam |
| 13 | 15A | Horn |
| 14 | 10A | Front and Rear Windscreen Wash Pumps |
| 15 | 30A | Oxygen Sensor - Air Flow Sensor |
| 16 | 30A | Air Pump Relay |
| 17 | 30A | Front Windscreen Wiper |
| 18 | 40A | Air Conditioning Fan |

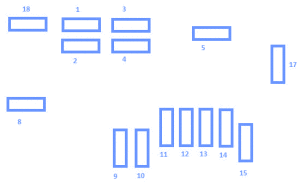

Citroen Berlingo 2009 Engine Fuse Panel/Board – Fuse Symbol Map
