| No. | Fuse rating | Protected component |
|---|---|---|
| F3 | 7.5A | Rear foglamp |
| F4 | 10A | +12V switched, brake + third brake lamps |
| F5 | 20A | +12V switched, radio – navigation screen – aerial |
| F6 | 7.5A | Left-hand brake lamp (GEN1 only) |
| F7 | 7.5A | Right-hand brake lamp (GEN1 only) |
| F14 | 5A | +12V switched, front/rear defrosting-cabin fan relay |
| F15 | 15A | 12V accessory socket |
| F16 | 25A | Front wiper and screenwash (GEN1 only) |
| F19 | 7.5A | +12V BAT starting key – dashboard |
| F20 | 20A | +12V BAT radio – navigation screen – aerial |
| F35 | 7.5A | +12V switched, switch illumination – diagnostic socket |
| F36 | 5A | +12V switched, IER telemetry box |
| F37 | 5A | +12V switched, navigation screen – radio |
| F38 | 5A | +12V BAT cabin UCE (BCM) – drive selector |
| FA | 10A | Spare fuse |
| FB | 15A | Spare fuse |
| FC | 20A | Spare fuse |
| FD | 20A | Spare fuse |
| FE | 25A | Spare fuse |
| FF | 7.5A | Spare fuse |

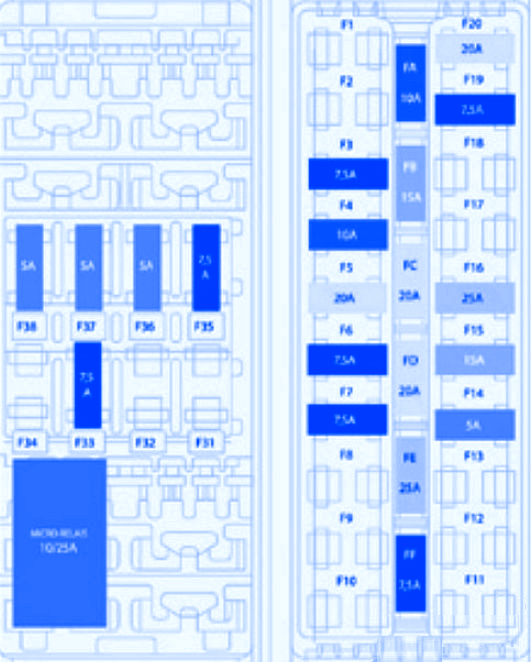

Citroën E-Méhari 2017 Passenger Compartment Fuse Panel / Board – Fuse Symbol Map
