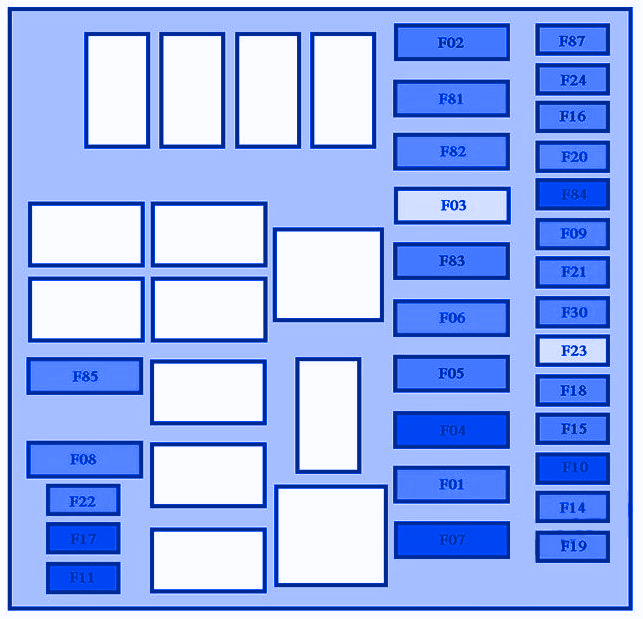

Citroen Nemo 2010 Engine compartment Fuse Box / Block Circuit Breaker
Citroen Nemo 2010 Engine compartment Fuse Box / Block Circuit Breaker
Fuses Rating (A) Protected component F01 60 A Control unit F02 40 A Passenger compartment fan. F03 20 A Starter motor supply F04 40 A ABS hydraulic block pump supply F06 30 A Single speed cooling fan control F07 40 A High speed cooling fan control F08 30 A Air conditioning compressor F09 15 A Towbar harness. F10 10 A Horn F11 10 A Engine management secondary load supply F14 15 A Main beam headlamps F15 15 A 12 V accessory socket. F16 7.5 A Engine management control unit – electronic gearbox control unit and gear lever -T20 relay coil F17 15 A Supply for ignition coil – injectors – engine management control unit (1.3 HDi) F18 7.5 A Engine management control unit (1.3 HDi) – T09 relay coil
Citroen Nemo 2010 Engine compartment Fuse Panel / Board – Fuse Symbol Map
Fuses Rating (A) Protected component F19 7.5 A Air conditioning compressor F20 30 A Supply for heated rear screen, electric door mirrors heater elements F21 15 A Fuel pump (1.4 petrol and 1.3 HDi) F22 20 A Engine management control unit (1.3 HDi) F23 20 A ABS hydraulic block electrovalves supply F24 7.5 A ABS F30 15 A Foglamps F81 60 A Pre-heat unit (1.3 HDi) F82 30 A Electronic gearbox pump – electronic gearbox supply F84 10 A Electronic gearbox control unit and electrovalves F85 30 A Cigar lighter – 12 V accessory socket F87 7.5 A Reversing lamps – water in Diesel sensor – airflow sensor – T02, T05, T14, T17 and T19 relay coils (except 1.3 HDi) F87 5 A Reversing lamps – water in Diesel sensor – airflow sensor – T02, To5, T14, T17 and T19 relay coils -battery state of charge sensor (except 1.3 HDi)
Citroen Nemo 2010 Engine compartment Fuse Panel / Board – Fuse Symbol Map
