Datsun 1600 SR20 2005 Dash Fuse Box/Block Circuit Breaker Diagram

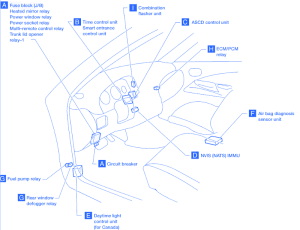

| Fuse/Relay Symbol | Fuse/Relay Map |
|---|---|
| A | Fuse Block (J/B) Heated Mirror Relay, Power Window Relay, Power Socket Relay, Multi-Remote Control Relay, Trunk Lid Opener Relay-1, Circuit Breaker |
| B | Time Control Unit Smart Entrance Control Unit |
| C | ASCD Control Unit |
| D | NVIS (NATS) IMMU |
| E | Daytime Control Unit (For Canada) |
| F | Air Bag diagnosis Sensor Unit |
| G | Fuel Pump Relay, Rear window Defogger Relay |
| H | ECM/PCM Relay |
Datsun 1600 SR20 2005 Dash Fuse Panel/Board – Fuse Symbol Map
