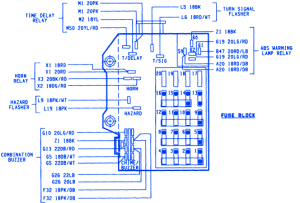

Dodge Dakota v8 1995 Fuse Box/Block Circuit Breaker Diagram

Dodge Dakota v8 1995 Fuse Box/Block Circuit Breaker Diagram



FuseFuse SizeColorFused CircuitFeed CircuitSheet No.
130AGreenC1 12DGA22 12BK/OR 8W-10-4
230A C/BSilverF21 12TN/BK8W-10-4
315ALt BlueF20 18WT (2)8W-10-4
45ATanA20 18RD/DB8W-10-4
520AYellowF35 16RD (2)A3 12RD/WT (2)8W-10-6
6 20A Yellow X1 18RD8W-10-6
X1 16RD/LG8W-10-6
710ARedF32 18PK/DB8W-10-6
820AYellowF33 18PK/RD8W-10-5
915ALt BlueX22 16RD/TNA31 14BK 8W-10-3
1020AYellowV6 18DB8W-10-3
1120AYellowL5 18BK (2)8W-10-3
1210ARedX12 20RD/WT8W-10-3
134APinkE2 200RE1 20TN8W-10-5
1415ALt BlueF14 18LG/YL (2)A21 14DB (2) 8W-10-3
152AGrayV34 20WT/RD8W-10-3
165ATanG5 22DB/WT8W-10-3
17
18
19
2025ANaturalF39 14PK/LGA3 12RD/WT8W-10-6

Dodge Dakota v8 1995 Fuse Panel/Board – Fuse Symbol Map
