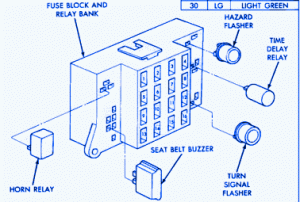

Dodge RCSB 2007 Pin Out Fuse Box/Block Circuit Breaker Diagram
| CAVITY | AMPS | COLOR | ITEM FUSED |
|---|---|---|---|
| 1 | 20A | YL | Hazard Flasher |
| 2 | 20A | YL | A/C Cycling Clutch Switch Back-Up Lamp Feed |
| 3 | 30A | C/BRKR SILVER CAN | Power Window Lift Motors |
| 4 | 30A | LG | A/C & Heater Blower Motor |
| 5 | 20A | YL | Panel Illumination Cav 12Park, Tail, Side Marker & License Lamps Clock Electronics Display Intensity |
| 6 | 20A | YL | Stop Lamp & Buzzer |
| 7 | 20A | YL | Horn, Horn Relay, Cigar Lighter & Tachometer |
| 8 | 20A | YL | Power Door Lock |
| 9 | 10A | RD | Radio |
| 10 | 20A | YL | Turn Signal Lamps |
| 11 | 20A | YL | Windshield Wiper & Washer |
| 12 | 4A | PK | Cluster Illumination, Radio A/C & Heater Control, ASH Receiver, Overdrive Indicating & Cigar Lighter Lamps |
| 13 | 5A | TN | Brake warning, Low Oil Pressure, Emission Maintenance Reminder, Seat Belt Warning, Low Washer Fluid, Transmission Oil, Check Engine, Upshift, 4X4 Indicator & Rear Brake Anti-Lock Warning Lamps, Electronic Low Fuel Temperature Gauge & Voltmeter |
| 14 | 5A | TN | Glove Box, Courtesy, Key-In & Ignition Switch Lamps Power Mirror, Radio & Clock Memory |
| 15 | - | - | - |
| 16 | - | - | - |
Dodge RCSB 2007 Pin Out Fuse Panel/Board – Fuse Symbol Map
