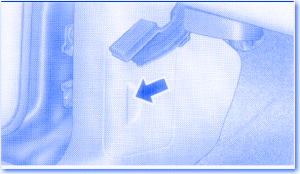

Dodge Sprinter 2003 Dashboard Fuse Box/Block Circuit Breaker Diagram
| Cavity | Fuse | Color | Description |
|---|---|---|---|
| 2 | 40A | Red | Heated Mirrors |
| 3 | 20A | Yellow | Cigar Lighter/Ignition |
| 7 | 25A | Pink | Amplifier Battery Feed |
| 8 | 40A | Red | Door Node, Non-Memory Pwr Mirror Sw, Battery feed |
| 9 | 20A | Yellow | Cluster Battery Feed |
| 10 | 15A | Blue | Cluster Battery Feed |
| 11 | 10A | Red | Satellite Radio/DVD Battery Feed |
| 12 | 25A | pink | Radio Better Feed |
| 13 | 15A | Blue | Auto Air Conditioner/Heater Batter Feed |
| 14 | 15A | Blue | Battery Feed For Hands Free Phone, CMTC, Sentry Key , Diagnostic |
| 16 | 10A | Red - | Yellow Holder Airbags |
| 18 | 10A | Red | Ign Run/Start for NGC, IPM, AC Relay, and Fuel Pump Relay |
| 19 | 10A | Red | Ign Run/Start For Cluster and TCase, Seat SW, Back Lighting |
| 24 | 10A | Red | Ign Run for AC/Heater Mod/EBL Relay |
| 25 | 10A | Red-Yellow | Holder Airbags |
| 26 | 10A | Red | ABS Module Ignition Run |
| 32 | 10A | Red | Spare |
| 33 | 10A | Red | 0CM Battery Feed |
| 34 | 10A | Red | Ignition Run/Start Unlock |
| 35 | 20A | Yellow | Reconfigurable power Outlets |
Dodge Sprinter 2003 Dashboard Fuse Panel/Board – Fuse Symbol Map
