Dodge Viper 2001 Fuse Box / Block Circuit Breaker Diagram
| Fuse | Amp) | Application |
|---|---|---|
| 2 | 40A | Ignition Switch |
| 3 | 40A | Ignition Switch & Headlamp Switch |
| 5 | 30A | Solid State Fan Relay |
| 8 | 30A | Rear Window Defogger Switch |
| 10 | 40A | Controller Anti-Lock Brake |
| 11 | 30A | Ignition Switch & Ignition Starter Motor Relay |
| 13 | 10A | Underhood Lamp, Trunk Lamp, Dome Lamp, Right/Left Visor/Vanity Mirror, Map/Reading Lamp, Instrument Cluster, Radio, Time Delay Relay, Remote Keyless Entry Module & Power Mirror Switch |
| 16 | - | Not Used |
| 18 | 20A | A/C Compressor Clutch Relay & Controller Anti-Lock Brake |
| 20 | 10A | Turn Signal/Hazard Switch |
| 21 | 20A | Fuel Pump/ASD Relay |
| 23 | 15A | Horn Relay |
| 25 | 15A | Stop Lamp / Vehicle Speed Control Switch |

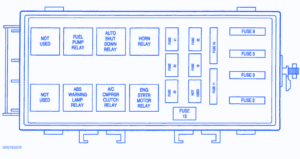

Dodge Viper 2001 Fuse Panel / Board – Fuse Symbol Map
