| No | Color | A | Description |
|---|---|---|---|
| 1 | Violet | 3A | LEFT AND RIGHT PODS, CLUSTER ILLUMINATION CONSOLE, RADIO, COMPACT DISC PLAYER |
| 2 | Violet | 3A | TRIP COMPUTER, VMM, CLIMATE CONTROL DISPLAY, RADIO, COMPACT PLAYER |
| 3 | Yellow | 20A | INTERMITTENT WIPER MODULE, WINDSHIELD WIPERS |
| 4 | Red | 10A | RADIO, COMPACT DISC |
| 5 | Violet | 3A | LIGHTING CONTROL MODULE |
| 6 | Yellow | 20A | CHIME, CLOCK KEYLESS ENTRY, VMM, TRIP COMPUTER, POWER MIRRORS, UNDERHOOD; COURTESY, REAR, GLOVE BOX, DOME/READING, TRUNK, VANITY LAMPS; POWER DOOR LOCKS, ATC CONTROL MODULE, RADIO, POWER MIRRORS, ILLUMINATED ENTRY, DECK LID RELEASE SOLENOID |
| 7 | Yellow | 20A | CHIME, CLOCK, INSTRUMENT CLUSTER, CRUSIE, INDICATOR, VMM, ILLUMINATED ENTRY RELAY MODULE, TRIP COMPUTER, CRUSIE CONTROL, SERVO |
| 8 | Yellow | 20A | POWER MIRRORS |
| 9 | Yellow | 20A | ANTI-LOCK, CONSOLE, HORNS, PASSIVE RESTRAINT MODULE, POWER ANTENNA, DIAGNOSTIC CONNECTOR |
| 10 | Brown | 7,5A | RIGHT SIDE FRONT AND REAR EXTERIOR LAMPS |
| 11 | — | — | — |
| 12 | Red | 10A | CHMSL, BRAKE SWITCH |

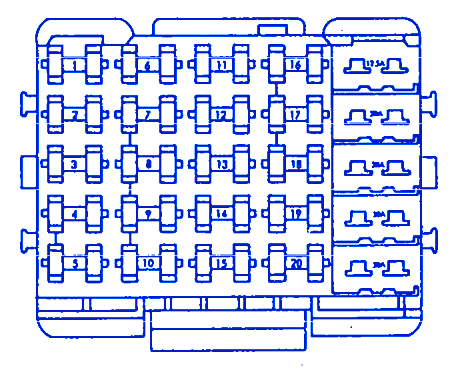

Eagle Premier 1992 Fuse Panel / Board – Fuse Symbol Map
| No | Color | A | Description |
|---|---|---|---|
| 13 | — | — | — |
| 14 | Blue | 15A | CLIMATE CONTROL MODULE AND DISPLAY |
| 15 | Red | 10A | LAMP OUTAGE MODULE, LEFT SIDE FRONT AND REAR EXTERIOR LAMPS |
| 16 | — | — | — |
| 17 | — | — | — |
| 18 | — | — | — |
| 19 | Red | 10A | RIGHT LOW BEAM HEADLAMP |
| 20 | Red | 10A | LEFT LOW BEAM HEADLAMP |
| 21 | Circuit Breaker | 22A | DAYTIME RUNNING LIGHTS (CANADA ONLY) |
| 22 | Circuit Breaker | 30A | POWER SEAT, POWER DOOR LOOCKS, PASSIVE RESTRAINT MOTORS |
| 23 | — | — | — |
| 24 | Circuit Breaker | 30A | POWER WINDOWS |
| 25 | — | — | — |
Eagle Premier 1992 Fuse Panel / Board – Fuse Symbol Map
