Ford C270 1999 Panel Fuse Box/Block Circuit Breaker Diagram
| PIN | CIRCUIT | CIRCUIT FUNCTION |
|---|---|---|
| 1 | 524 (R/Y) | Remote Anti-Theft Personality Module |
| 2 | - | Not Used |
| 3 | 301 (R/BK) | Rear Park Lamps, License Lamps, A/T Select Illumination |
| 4 | 331 (P/W) | Door Courtesy Lamp Switches, Remote Anti-Theft Personality Module |
| 5 | 368 (BL) | Left Rear Park/Stop/Turn Lamps |
| 6 | - | Not Used |
| 7 | 525 (PK) | Driver's Seat Belt Buckle Switch |
| 8 | 441 (BL/BK) | Remote Anti-Theft Personality Module Power |
| 9 | - | Not Used |
| 10 | 330 (BL/R) | Luggage Compartment Lamp, Remote Anti-Theft, Personality Module |
| 11 | - | Not Used |
| 12 | 352 (GN/Y) | Shift Lock Actuator |
| 13 | - | Not Used |
| 14 | 160 (BK/Y) | Shift Lock Actuator |
| 15 | 367 (Y) | Right Rear Park/Stop/Turn Lamps |

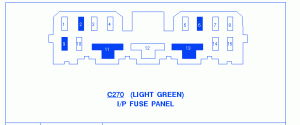

Ford C270 1999 Panel Fuse Panel/Board – Fuse Symbol Map
