Ford E350 Econoline 351 1995 Brake Electrical Circuit Wiring Diagram
| SYMBOL | DESCRIPTION |
|---|---|
| Pin Number Circuit Circuit Function | |
| 1 | 298 (P/O) Fused Accessory Feed |
| 2 | 5 (O/LB) Rear Turn Signal Lamp (RH) |
| 3 | - Not Used |
| 4 | 10 (LG/R) Stoplamp Switch Feed |
| 5 | 2 (W/LB) Front Turn Signal Lamp (RH) |
| 6 | 44 (LB) Turn Signal |
| 7 | - Not Used |
| 8 | 3 (LG/W) Front Turn Signal Lamp (LH) |
| 9 | 810 (R/LG) Stoplamp Switch to Stoplamp |
| 10 | 9 (LG/O)Rear Turn Signal Lamp (LH) |
| 11 | 385 (W/R) Flasher to Emergency |

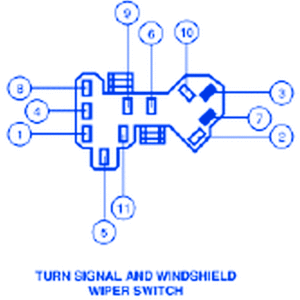

Ford E350 Econoline 351 1995 Brake Electrical Circuit Symbol Map
