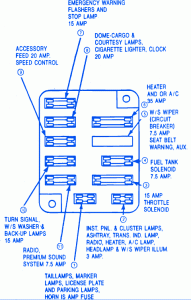

Ford Econoline 150 1994 Parking Lamp Fuse Box/Block Circuit Breaker Diagram

Ford Econoline 150 1994 Parking Lamp Fuse Box/Block Circuit Breaker Diagram



Fuse SymbolFuse MapAmps
1Tail Lamps, Marker Lamps, License Plate and Parking Lamps, Horns18A
2Ins. Pnl. & Cluster Lamps, Ashtray, Trans. Ind. Lamp, Radio, Heater, A/C Lamp, Headlamp & W/S Wiper Illum3A
3Throttle Solenoid15A
4Fuel Tank Solenoid7.5A
5W/S Wiper (Circuit Breaker) Seat Belt Warning, Aux.7.5A
6Heater and or A/C35A
7Emergency Warning Flashers and Stop Lamp15A
8Dome-Cargo & Courtesy Lamps, Cigarette Lighter, Clock20A
9Accessory Feed, Speed Control20A
10Turn Signal W/S Washer & Back-Up Lamps15A
11Radio, Premium Sound System7.5A

Ford Econoline 150 1994 Parking Lamp Fuse Panel/Board – Fuse Symbol Map
